Technical parameters:

1. Flat glass max loading size: 1200x2400 mm,2400x4200 mm,2400x5000 mm, according to requirements

2. Flat glass min.glass size:240×240 mm

3. Flat glass thickness range: 4-19mm

4. Glass types: Transparent float glass, Tinted Float Glass, Single Glass Screen

5. Product Quality meets standard.

6. Introduction of equipment structure

6.1 An independent drive system shall be provided for the film conveying roller.

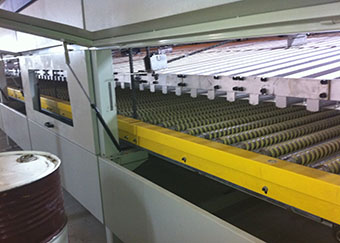

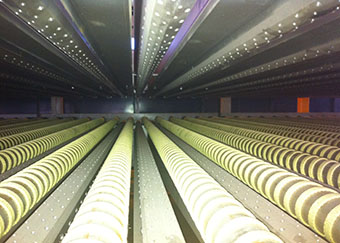

6.2 Electric heating furnace: fast quartz roller table, independent transmission system,matrix type electric heating control area, and space temperature display point, furnace upper and lower electric switch and heat balance convection system.

6.3 Wind grid roll: independent drive system, upper and lower wind power switch.

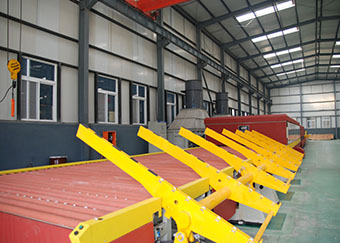

6.4 Out roll table: set independent drive system.

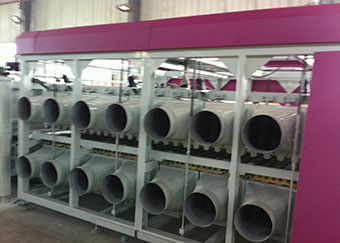

6.5 Air supply system: frequency converter regulation.

6.6 Electrical control system: man-machine interface operation control system; PLC motion control; intelligent electric heating control;
