Bend glass tempering furnace Model (double working standations) is for producing bending tempered glass.
The system consists of the following:
1) Loading Table with conveyor and driven system;
2) Electric Heating Furnace with heating power balance and auxiliary convective heating system;
3) Bend Quench Section with conveyor and driven system ;
4) Unloading Table with conveyor and driven system ;
5) Centrifugal Blowers & Air Duct and controlling System for quenching and cooling down the glass;
6) Electrical & Program Control System;
7) Pneumatic control system (excluding air compressor)

consult

Technical parameters:

1. Tempering glass thickness : 3.2 - 12 mm

2. Maximum Glass size : 1,830 (Straight) x 800 (curve) mm

Min glass size: 200 x 350 (curve) mm

3. Min. Radius : 1000 mm (the mechanisim is able to bend until 500mm Min, however, for tempering

3.2mm automobile glass, suggested radius is no less than 1000mm)

4. Productivity: 35 Loads per hour for 4 mm (glass size 1,830mm / straight x 800mm/ curve, double batch)

5. Applied Products Standard : ECE-R43 (automobile glass standard)

6. Applied raw glass types: Float glass (soda lime silicate glass), Patterned & Figured glass, Tinted glass, Hard Coated Glass

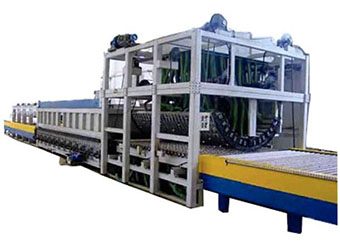

Bend glass tempering furnace

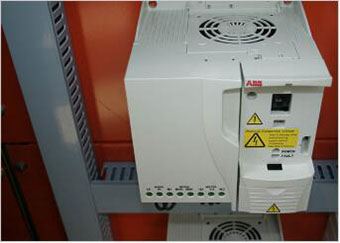

Frequency convertor

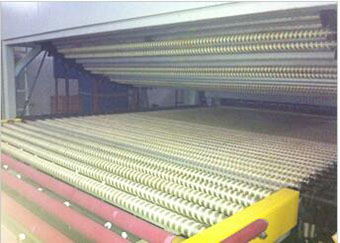

Inside the furnace

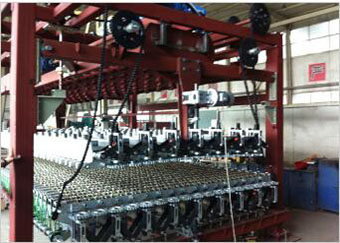

Bend glass tempering furnace

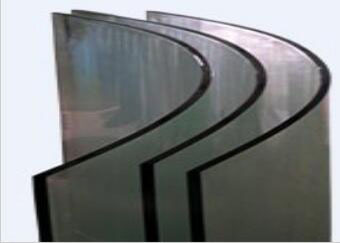

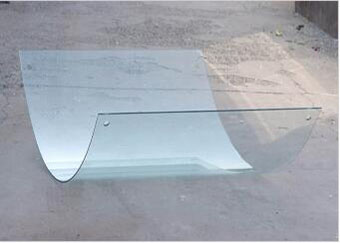

Bend tempered glass
