Technical parameters:

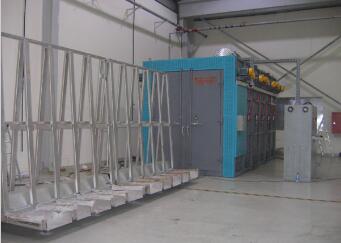

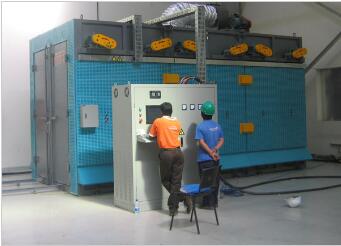

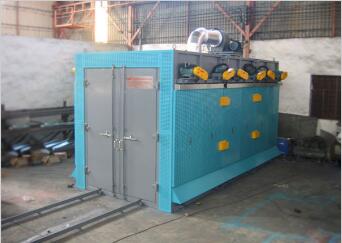

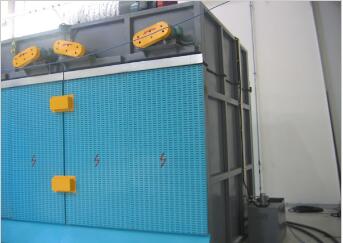

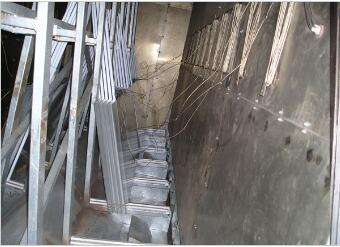

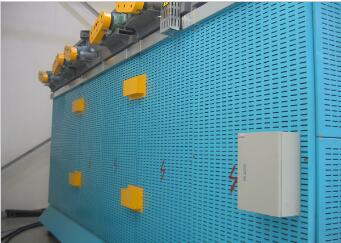

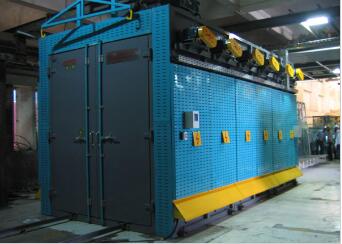

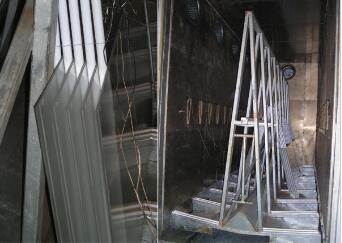

The tempering glass heat soak furnaces JZ-2500/5000 is made as the EN standard which is strengthen safety of glasses. Adopting solid state relay. The computer can record and control the parameters intelligently. Temperature control mode is auto completed by electronic control system, which based on PLC and Kingview. The temperature and the result can be record and print automatically each time. The air circulating system is made up by 12 blowers. There is one more blower used to control the cooling rate. There are 24 thermocouples in the heat furnace body, can monitor temperature on surface of glasses from every area. There are also 6 thermocouples on the top of the furnace, they can monitor temperature in the 12 areas. The computer can display the status.

Maxi. size for flat tempering glass: according to client’s requirement

Thickness of glass: 4-19mm

Performance of this machine :Meet EN14179-1:2005 standard

Total power: 311.5 KW (Heating 270KW+FAN 41.5KW)

Normal heating temperature to limit requirements temperature (280 c )

Keep the top limit temperature (290 ± 10 degrees) 120 min-480 min, Adjustable;

Maximum temperature to cooling temperature (70 degrees) 120 min-480min, Adjustable;
