Technical parameters: Bearing structure glass straight line single edging machine The transmission adopts roller bearing structure. Each chain pad equips 5 bearings including supporting bearing, transmission bearing and spring buckle bearing. This structure makes the friction of glass processing small, and the transmission more stable to guarantee the processing accuracy of glass bottom and edge grinding. Nos. of spindle: 9, 10, 11, 12, 14 Working speed: 0.6-6 m/min Min.processing glass size: 30 mm Max.processing glass width: 3000 mm Glass thickness: 3-30 mm

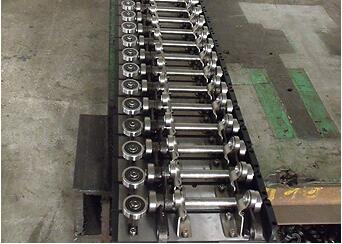

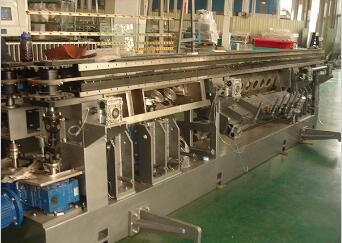

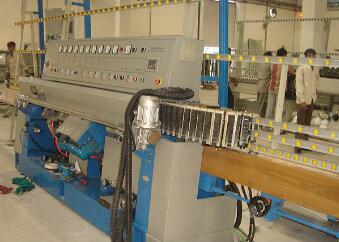

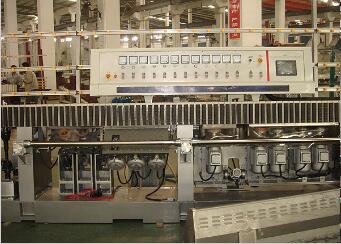

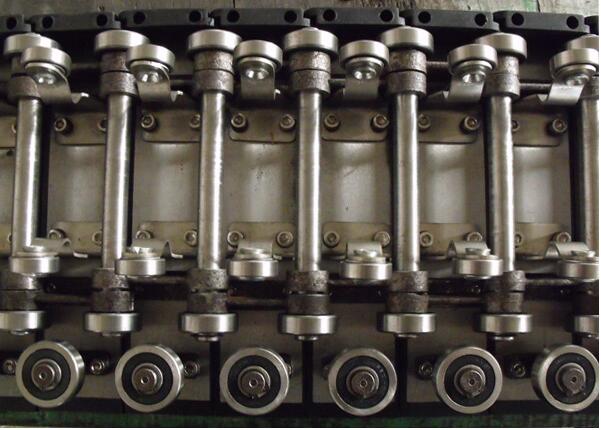

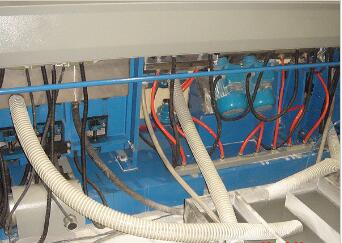

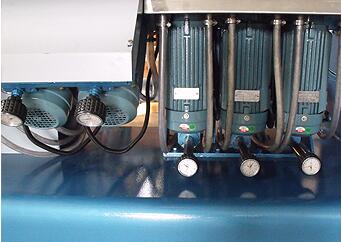

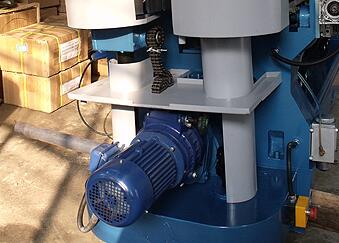

Bearing Structure	Bearing Structure	Motor

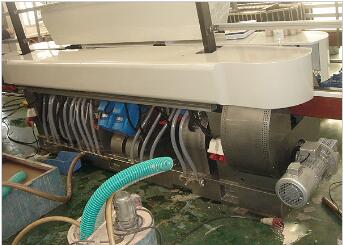

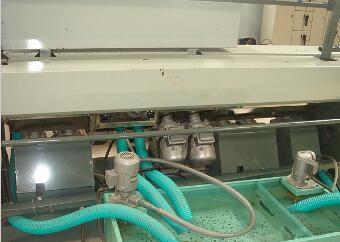

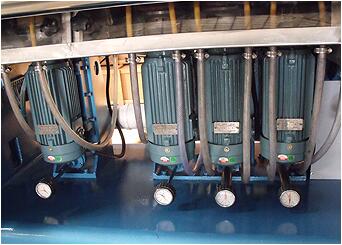

Spindle	Main Transmission	Plug

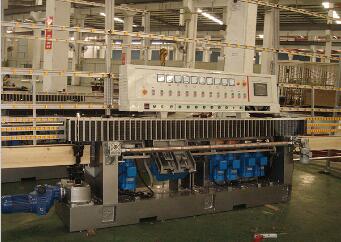

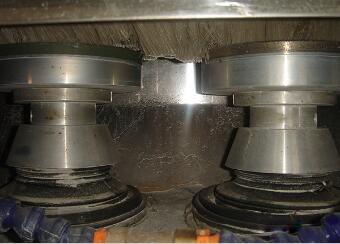

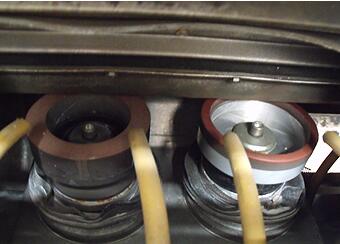

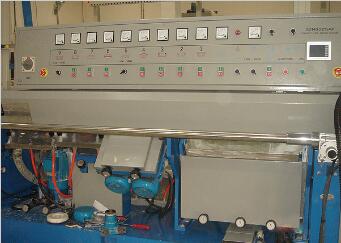

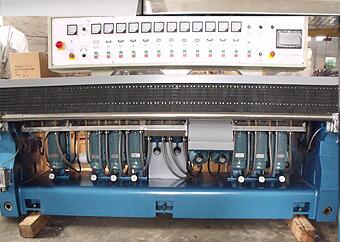

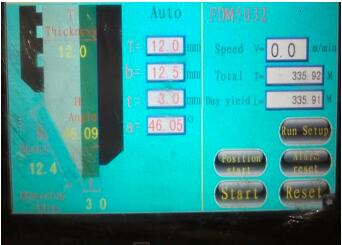

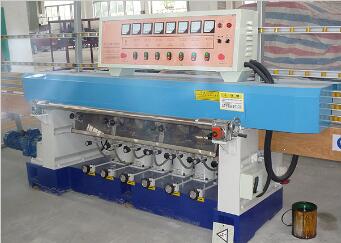

Resin Wheel	Front View	Display Screen

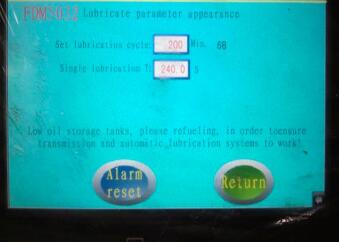

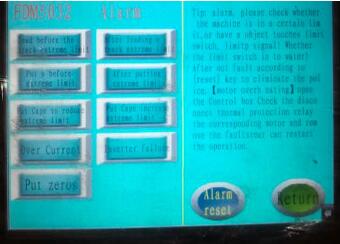

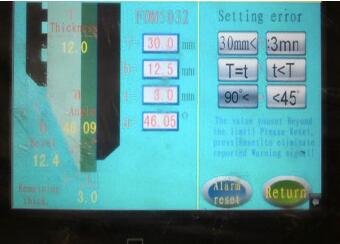

Display Screen	Display Screen	Display Screen

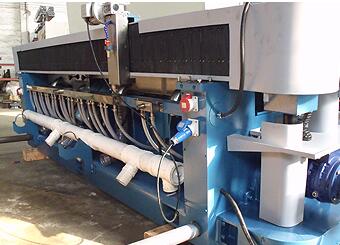

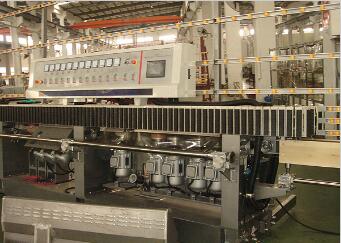

Chain Structure Straight Line Single Edging Machine A special telescopic platen is used to grind glass of different thicknesses. The machine is easy to operate and stable. The front rails can be moved in parallel to adjust the thickness of the glass for easy and precise operation. The chamfering grinding wheel adopts pallet, and there is no vibration during grinding. The main transmission is frequency conversion speed regulation. Wheels: 9, 10 working speed: 0.6-8.0m/min Max. arris width: 2.5mm Min. glass size: 100mmX100MM Glass thickness: 3-19mm

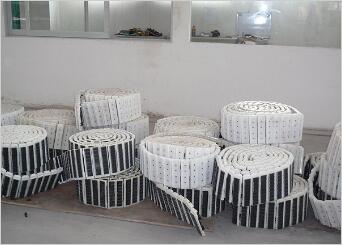

Chain Plate	Front Spar	Grinding Wheel
Left  View	Right View	Right View
Back Side View	Spindles	Watertank
Front  View	Back View	Back  View
Front  View	Back View	Front View

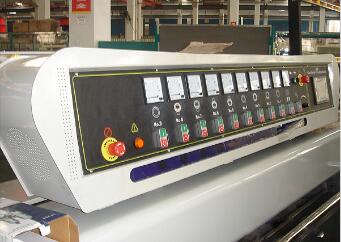

Control Pannel	Grinding Wheel	Front View
