Technical parameters:

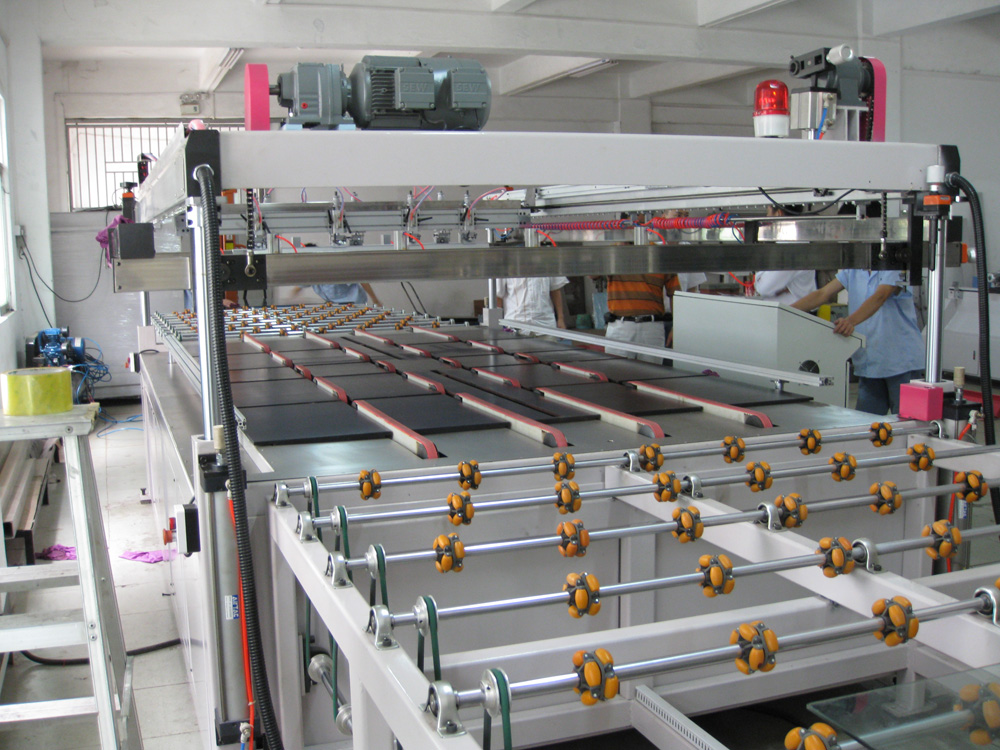

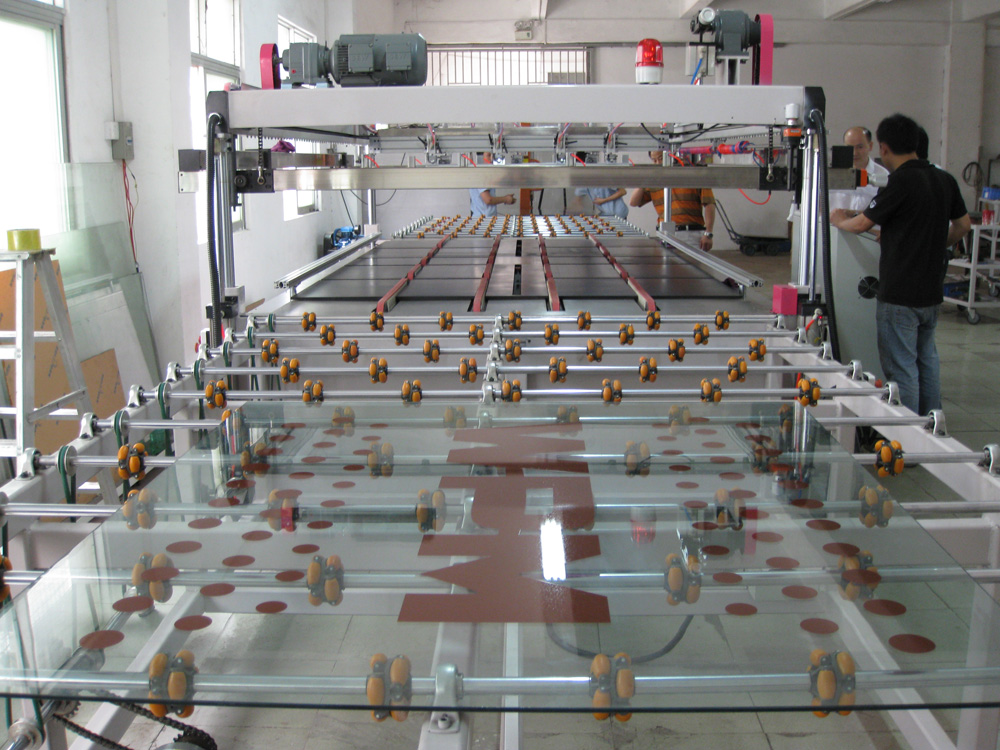

Full-automatic glass screen printing machine production line, which has the function of pre-positioning, transmission, accurate positioning, printing, drying, cooling of the flat substrate, and the integration of the next film, so that the technical indicators of this production line are guaranteed. The entire printing production line has a mature design and high-end configuration. Considering various possible situations, customers can reduce some configurations as needed to reduce investment costs. The printing line is designed to discharge linearly in one direction. Considering the specific conditions of the workshop and the workshop, a steering conveyor can be used to change the direction.

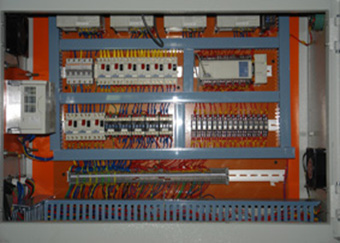

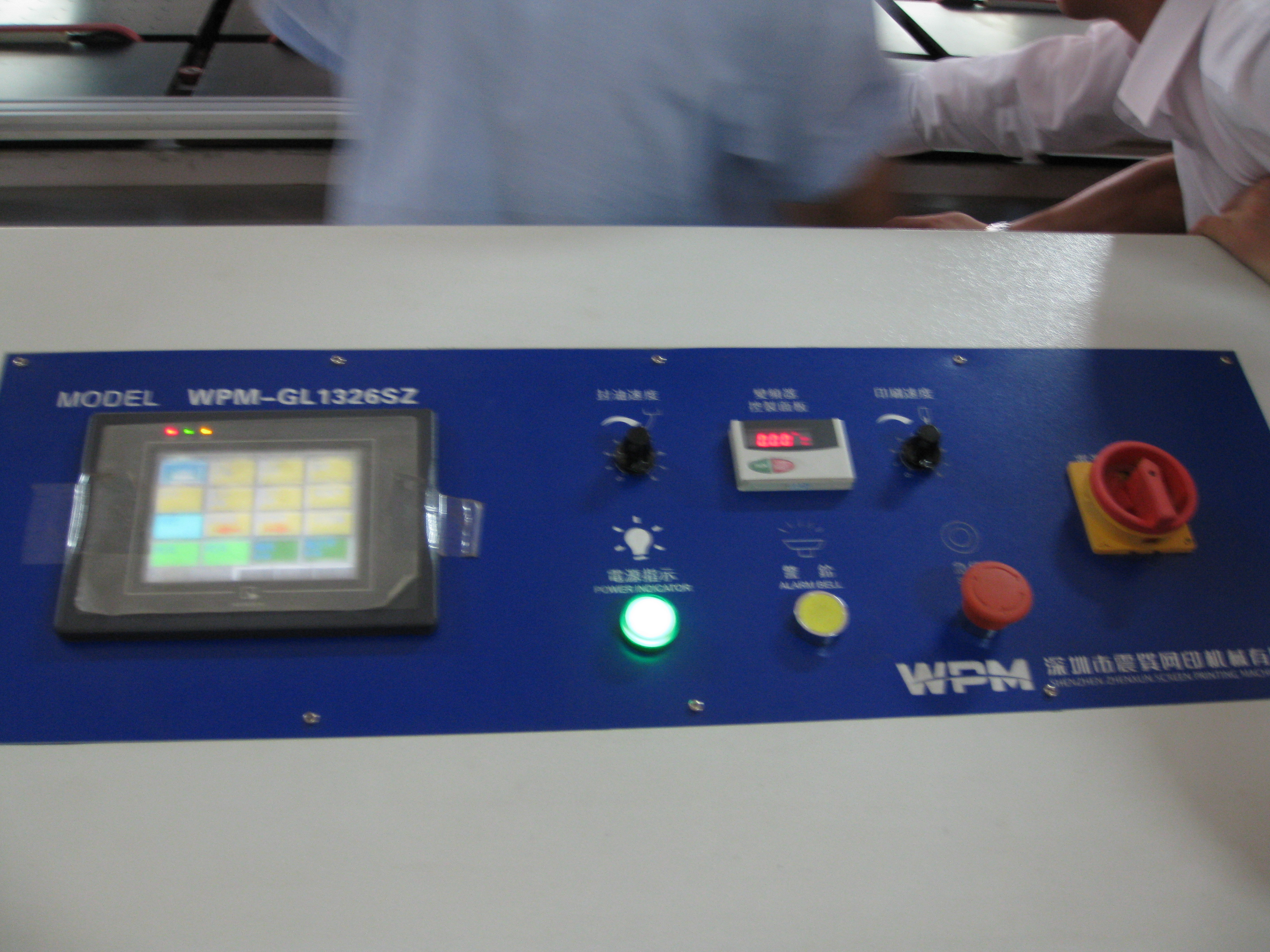

Control System: Mitsubishi PLC

Glass thickness: 2.5-19mm

Max. Printing size: can be customized

Min. Printing: size 800×1200mm

Glass thickness: 2.5-19mm

Convey speed: 25m/min (50HZ) ,4m/min(7.5HZ)

Air consumption: 6kg/c ㎡

Printing speed: 1 minute per piece
