DIAMOND CUP WHEEL

20 years experience in diamond tool manufacturing

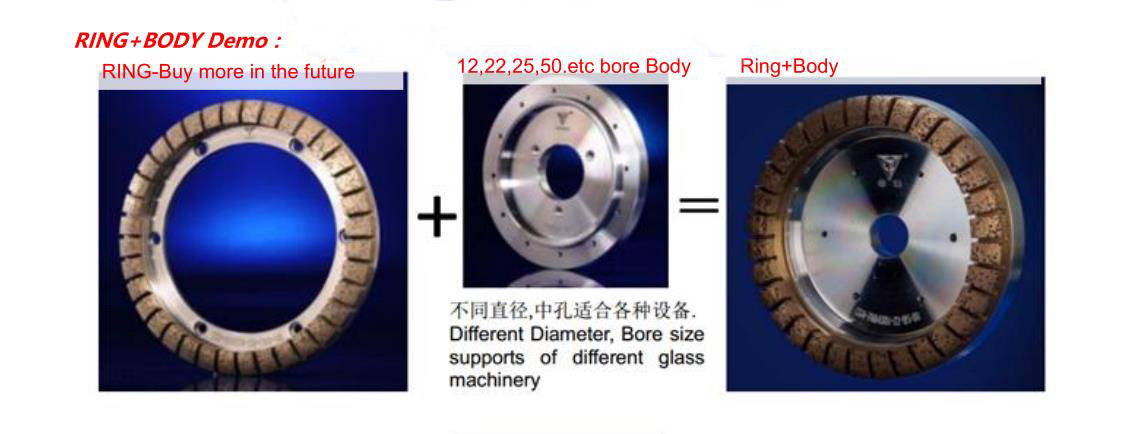

Our wheel has applied the international patent, while keeping the same grinding quality, SPEED is several times quicker; CONSUMPTION of diamond wheel are much less in respectively; WHEEL LIFE is serveral times longer than traditional cup wheel; GRINDING quality improve 1-2 grades; COST PERFORMANCE is much more higher than traditional wheel. Our wheel's split structure design is also advanced in the industry. As shown as bellow, the working ring is consumable part, while the wheel base can be recycled. When the working ring ran out, you can only change the ring.

Glass Straight Line Grinding Wheel

The segmented diamond wheel is used for rough grinding of glass in position 1# ,2#,3# of all glass straight line edging machines from most of the famous Chinese brand machines,including Golive,Suntech,Dewei,YinHong,Folga and etc.;as well as foreign brands such as BAVELLONI,BOVONE,BOTTERO and JAPAN BANDO,etc. It has smaller segments with multiple grits bond , the grinding ability is very strong, can be used normally for the processing of 6-19mm glass.

Having an excellent performance with No Chips+High Finishing+High Speed+Long Lif.

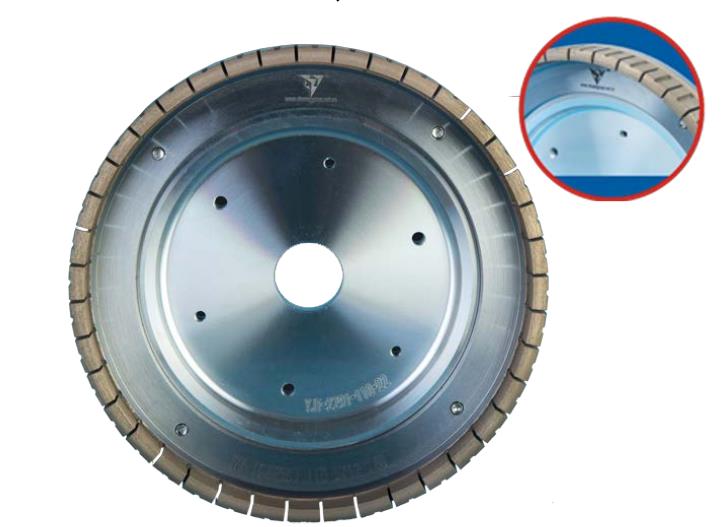

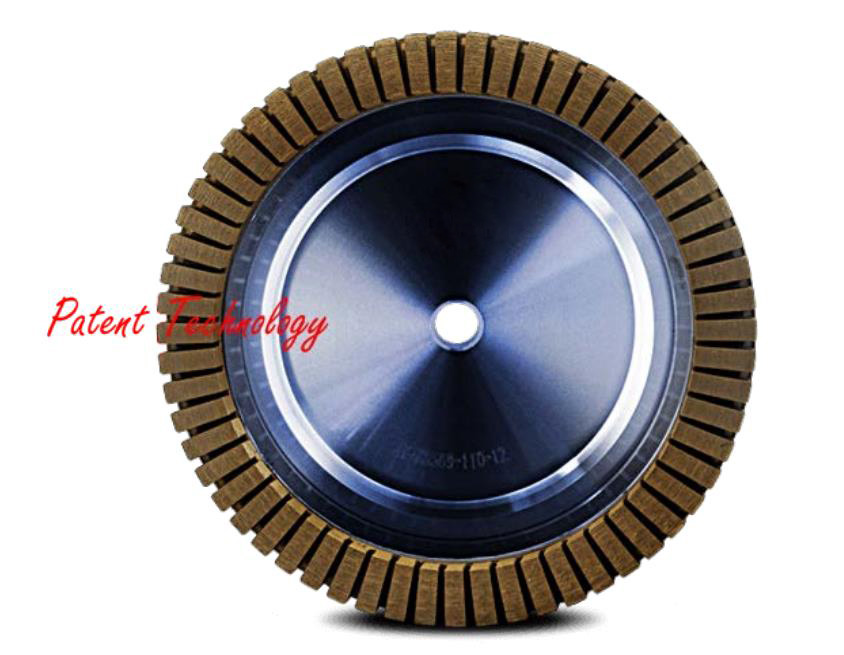

Full Segmented Diamond Cup Wheel

Diameter	Bore	Grit	Machines	Pos.
150 mm	12, 22 , 25 , 50 mm	80#, 100# , 140# , 230#	Single edger, Double edger	No.1, 2 ,3
175 mm

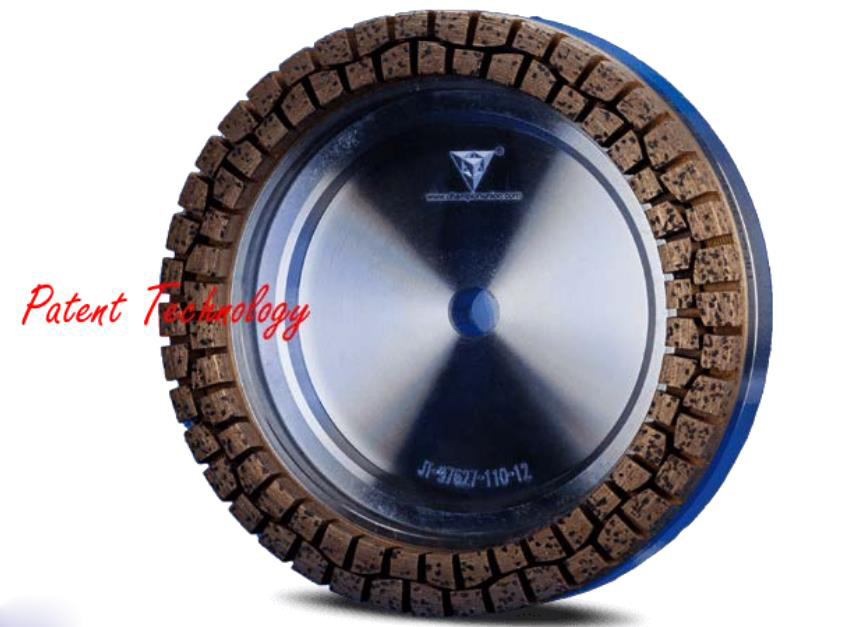

Double Ring Full Segmented Diamond Cup Wheel

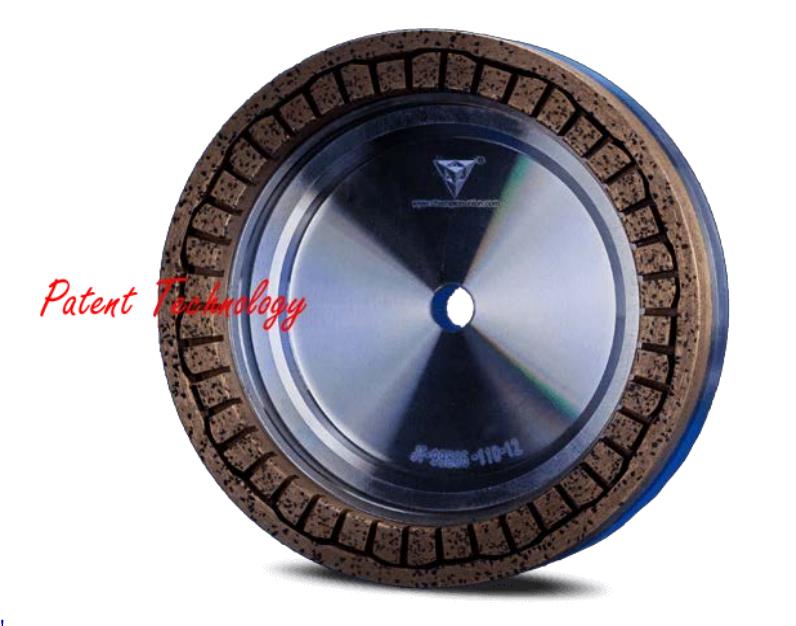

Double Ring Inner Segmented Cup Wheel

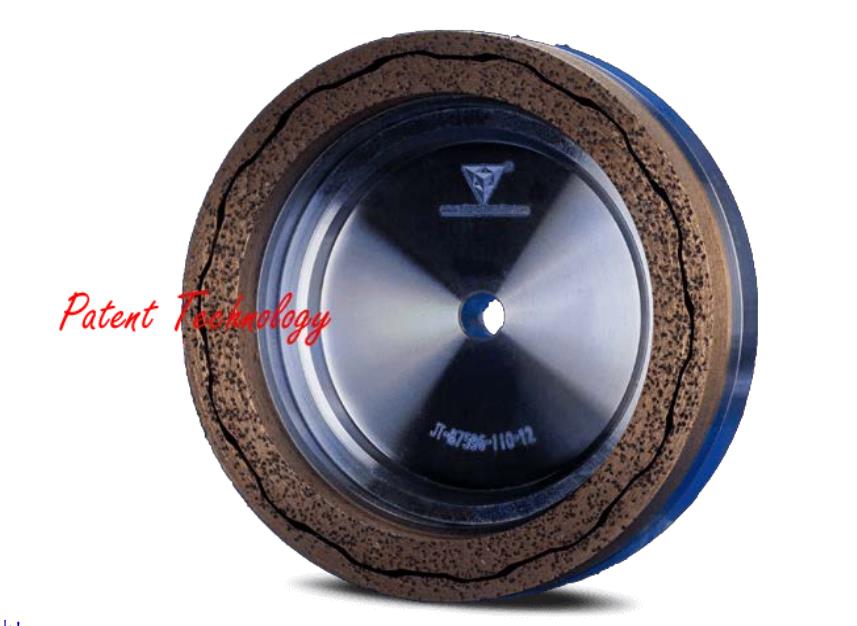

Double Ring CC Cup Wheel

Diameter	Bore	Grit	Machines	Pos.
150 mm	12, 22 , 25 , 50 mm	80#, 100# , 140# , 230#	Double edger	No.1, 2
175 mm

Glass Bevelling Wheel

The half segmented diamond wheels can be divided into inner half tooth diamond wheels, and the outer half tooth diamond wheels. These wheels are used mainly for the position 1#&2#&3# for glass bevelling edger. The wheels are used popularly in most of the famous brand machines,including Golive,Suntech,Dewei,YinHong,Folga and LinShi,etc in China;

as well as foreign brands such as BAVELLONI,BOVONE,BOTTERO and JAPAN BANDO,etc.

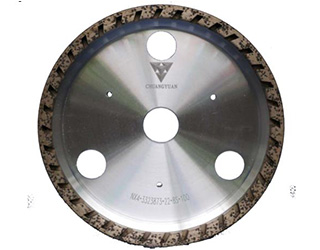

Bevelling Diamond Cup Wheel

Shaped Bevelling Diamond Cup Wheel

Diameter	Bore	Grit	Machine	Pos.
150 mm	12, 22 , 25 , 50 mm	80#, 100# , 120#, 140# ,200#, 230#	Bevelling edger	No.1,2,3
