RESIN WHEEL

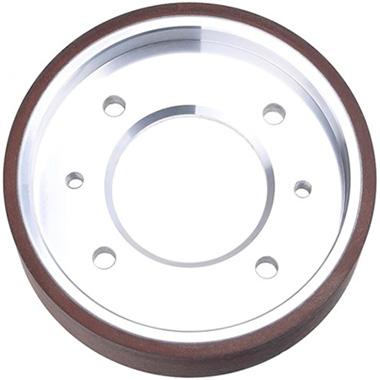

The resin wheel is made of high-quality resin binder and diamond sand, it is formed by high temperature hot pressing. Common resin wheels on the market are green, red and black colour.

consult

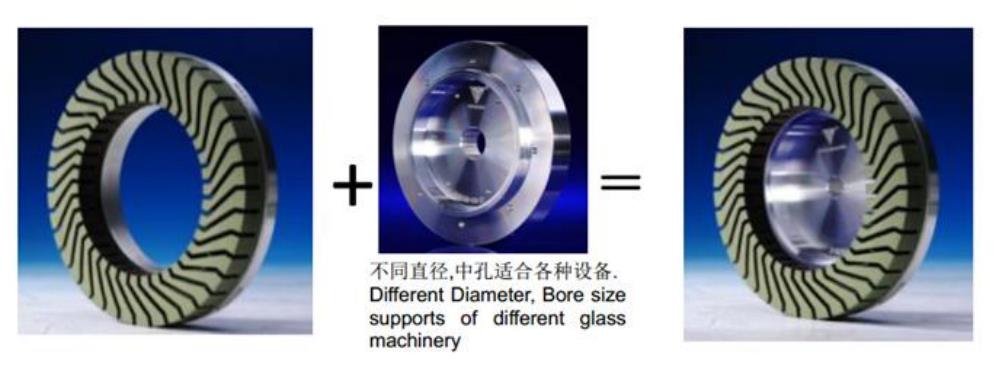

There are two kinds of wheel bases: aluminum base and plastic base. Glass resin wheel are used for fine grinding after diamond wheel process and before the polishing wheel process. It has the characteristics of sharp , durable, easy to polish and so on. It is suitable for the fine grinding process of single edger, double edger, beveling machine and special-shaped machine. And we have special design of split structure, the wheel base can be recycled , as shown as bellow:

Glass Straight Line Grinding Wheel

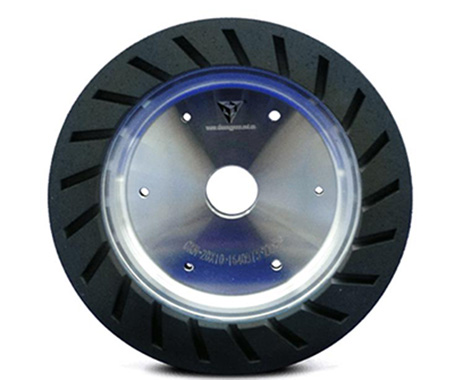

Full Segmented Resin Wheel

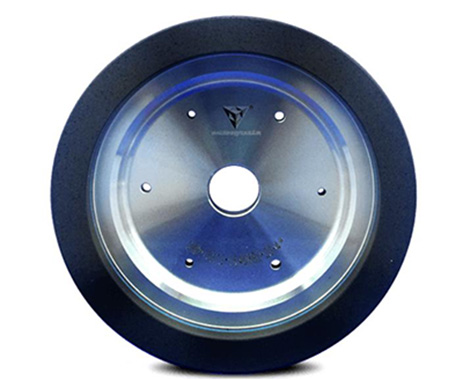

CC Resin Cup Wheel

Diameter	Bore	Grit	Machines	Pos.
130 mm, 150 mm , 175 mm	12, 22 , 25 , 50 mm	180# , 240# , 320#	Single edger, Double edger	No. 3 , Arris

Glass Bevelling Wheel

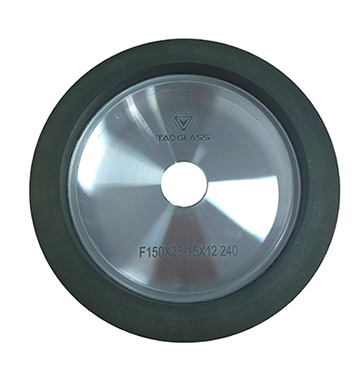

Turbo Bevelling Resin Wheel

CC Bevelling Resin Wheel

Diameter	Bore	Grit	Machines	Pos.
150 mm	12, 22 , 25 , 50 mm	230#, 300#, 400#, 500#, 600#, 700#	Bevelling Edger	No.3 , 4, 5, 6, 7

Seaming Machine Resin Wheel

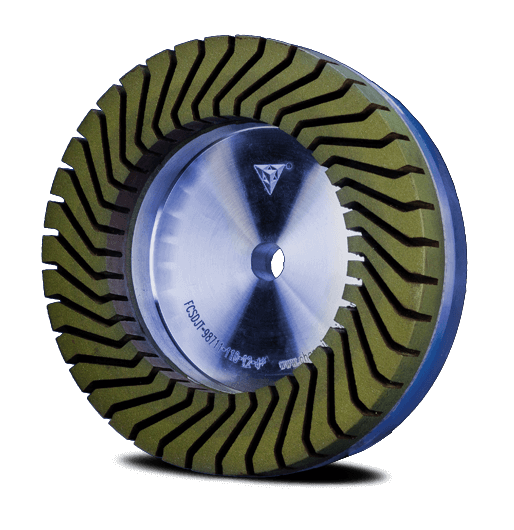

Seaming Wheel

Diameter	Bore	Grit	Machines	Pos.
150 mm ,160 mm	12, 22 , 25 , 50 mm	120#, 150#, 180#, 240#	Seaming Machine	/
